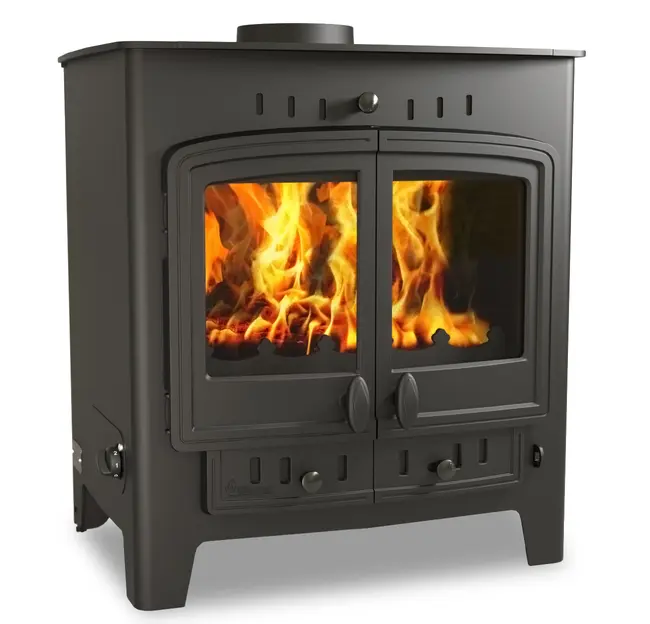

Villager Boiler 20
[VB20-DUO] Villager Boiler 20 (Villager Boiler) technical information
Stove model code: VB20-DUO
Stove model production status: Discontinued
Information last updated : 08/11/2022
Dimensions
| Height (mm): | 680 |
| Width (mm): | 634 |
| Depth (mm): | 431 |
| Height (from top to centre of rear flue) (mm): | 521 |
| Depth (from back to centre of top flue) (mm): | 154 |
| Flue diameter (mm): | 152 |
| Weight - when packed (kg): | 151 |
| Ideal log length (mm): | 405 |
Distances to combustibles
| Min. combustible distance to rear (mm): | 200 |
| Min. combustible distance to sides (mm): | 150 |
| Min. combustible distance above (mm): | 457 |
| Please note: We recommend allowing for a minimum clearance of 100mm to non-combustible materials around the entire appliance. | |
Features
| Ecodesign Ready: | No |
| Model Series / Generation: | 1 |
| Wet or Dry stove: | Wet |
| Burns wood fuel: | Yes |
| Burns solid smokeless fuel: | Yes |
| Gas stove: | No |
| Suitable for Smoke Control Areas: | No |
| Stove guarantee: | Seven-year |
| Suitable for a 12mm constructional hearth: | No |
| Suitable for direct air installation: | No |
| Stove body type: | Freestanding |
Output - Wood fuel
| Output - wood (kW): | 18 |
| Min. output - wood (kW): | 2 |
| Max. output - wood (kW): | 6 |
| Output to water - wood - boiler stove (kW): | 14.5 |
| Nett Efficiency - wood (%): | 70.5 |
Output - Solid smokeless fuel
| Output to water - solid - boiler stove (kW): | 18 |
Boiler Tappings
| Boiler Tapping Measurement A (mm): | 340 |
| Boiler Tapping Measurement B (mm): | 374 |
| Boiler Tapping Measurement C (mm): | 278 |
| Boiler Tapping Measurement D (mm): | 463 |
Parts list
| Code | Name | Type | Quantity | Optional Extra? | |
| 1) | AFS1405 | Airwash Knob | Handles and Locks | 3 | No |
| 2) | VFS230 | Slider Plate Lh Door For Esprit 8/10 Duo | Air Inlet | 1 | No |
| 3) | AFS2770 | Handle Assembly | Handles and Locks | 1 | No |
| 4) | AFS2715 | Handle Assembly | Handles and Locks | 1 | No |
| 5) | AFS2750 | Complete Fire Door (left) | Door | 1 | No |
| 6) | AFS2765 | Complete Fire Door (right) | Door | 1 | No |
| 7) | ARA019 | Arada Rope Kit 3 | Door Rope | 1 | No |
| 8) | VFS203 | Glass Kit | Glass and related parts | 2 | No |
| 9) | AFS1805 | Lower Feds Plate | Throat Plate | 1 | No |
| 10) | AFS011 | 6 Inch Flue Spigot | Spigot | 1 | No |
| 11) | AFS012 | 6 Inch Hot Plate | Hot Plate | 1 | No |
| 12) | AFS1380 | Fire Bed Surround | Grate Bar | 4 | No |
| 13) | AFS2705 | Self Levelling Feet | Feet | 2 | No |
| 14) | AFS1332 | Grate Bar Support | Grate Bar Support | 1 | No |
| 15) | AFS002 | Grate Bar | Grate Bar | 11 | No |
| 16) | AFS2725 | Comb And Riddle Pull | Comb and Riddle Pull | 1 | No |
| 17) | AFS2735 | Lower Heat Shield | Door | 1 | No |
| 18) | AFS2730 | Ash Pan | Ash Pan | 1 | No |
| 19) | AFS008 | Operating Tool | Operating Tool | 1 | No |
| 20) | AFS2745 | Fuel Retainer | Fuel Retainer | 1 | No |
| 21) | AFS1800 | Thermostat Mounting Bracket | Boiler Thermostat | 1 | No |
| 22) | AFS2740 | Thermostat | Boiler Thermostat | 1 | No |
| 23) | AFS1379 | Thermostat Knob | Boiler Thermostat | 1 | No |
| 24) | AFS2755 | Thermo Panel | Boiler Thermostat | 1 | No |
| 25) | AFS2795 | Hinge (left Hand) | Hinge | 2 | No |
| 26) | AFS2775 | Hinge (right Hand) | Hinge | 2 | No |
| 27) | AFS1010 | Glass Clips | Glass and related parts | 1 | No |
| 28) | AFS1361 | Gasket And Glass Clips | Glass and related parts | 1 | No |
| 29) | ARA010 | Arada Hot Glove | Arada Brand Accessories | 1 | No |
| 3) | AFS1135 | Floor Fixing Kit | Accessories | 1 | Yes |
