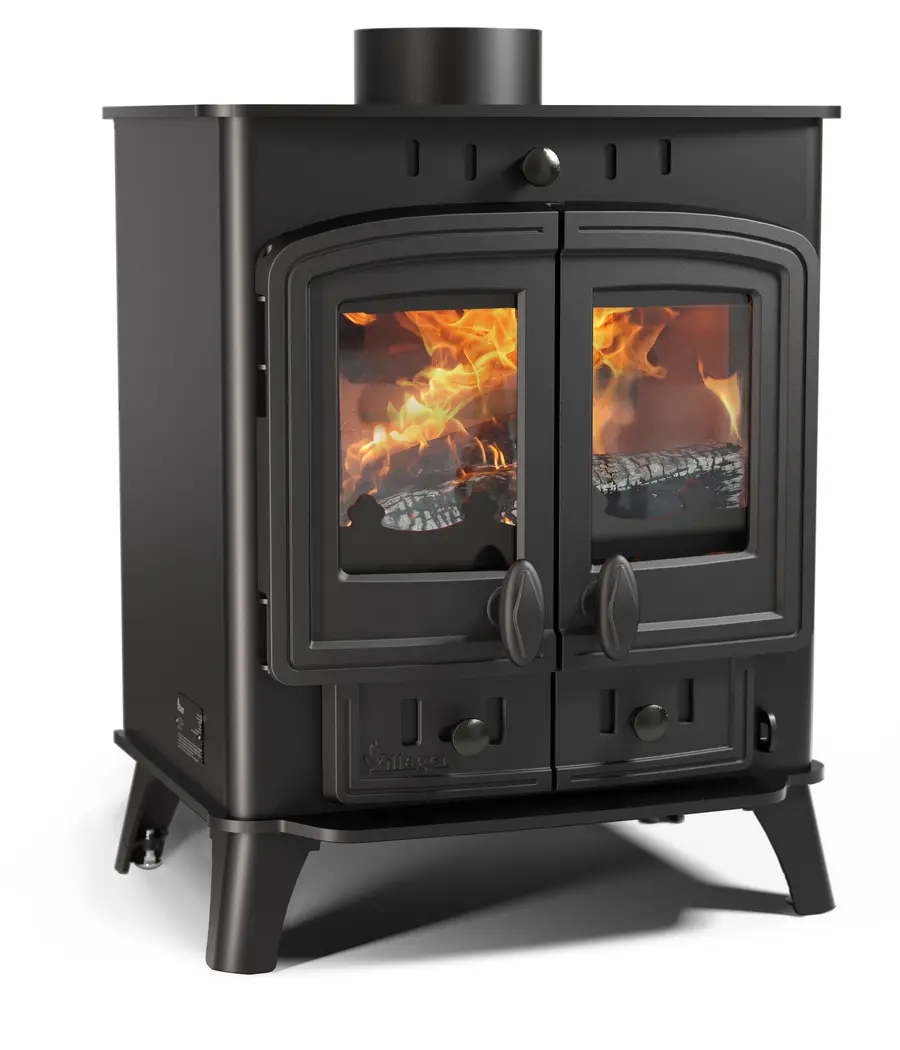

[V5-DUO] Villager Duo 5 (Villager Duo) technical information
Stove model code: V5-DUO
Stove model production status: Discontinued
Information last updated : 08/11/2022
Documentation
| Title | Document type | BK number / revision | Document date |
| Duo 5 | Declaration of Performance | - | - |
Dimensions
| Height (mm): | 566 |
| Width (mm): | 463 |
| Depth (mm): | 367 |
| Height (from top to centre of rear flue) (mm): | 458 |
| Depth (from back to centre of top flue) (mm): | 120 |
| Flue diameter (mm): | 127 |
| Weight - when packed (kg): | 76 |
| Weight - when unpacked (kg): | 71 |
| Ideal log length (mm): | 325 |
Distances to combustibles
| Min. combustible distance to rear (mm): | 975 |
| Min. combustible distance to sides (mm): | 750 |
| Min. combustible distance above (mm): | 381 |
| Please note: We recommend allowing for a minimum clearance of 100mm to non-combustible materials around the entire appliance. | |
Features
| Ecodesign Ready: | No |
| Model Series / Generation: | 1 |
| Wet or Dry stove: | Dry |
| Burns wood fuel: | Yes |
| Burns solid smokeless fuel: | Yes |
| Gas stove: | No |
| Suitable for Smoke Control Areas: | No |
| Stove guarantee: | Lifetime |
| Suitable for a 12mm constructional hearth: | Yes |
| Suitable for direct air installation: | No |
| Stove body type: | Freestanding |
Output - Wood fuel
| Output - wood (kW): | 5 |
| Min. output - wood (kW): | 1 |
| Max. output - wood (kW): | 6 |
| Nett Efficiency - wood (%): | 83.7 |
| Wood refuelling period: | 1 hour |
Boiler Tappings
| Boiler Tapping Measurement A (mm): | 257 |
| Boiler Tapping Measurement B (mm): | 315 |
| Boiler Tapping Measurement C (mm): | 312 |
Parts list
| Code | Name | Type | Quantity | Optional Extra? | |
| 1) | VFS201 | Slider Plate | Air Inlet | 1 | No |
| 2) | AFS2770 | Handle Assembly | Handles and Locks | 1 | No |
| 3) | AFS2720 | Complete Fire Door (left) | Door | 1 | No |
| 4) | ARA019 | Arada Rope Kit 3 | Door Rope | 1 | No |
| 5) | AFS1278 | Glass Kit | Glass and related parts | 2 | No |
| 6) | AFS3190 | 5" Spigot | Spigot | 1 | No |
| 7) | AFS3200 | 5" Hotplate | Hot Plate | 1 | No |
| 8) | AFS3180 | Throat Plate | Throat Plate | 1 | No |
| 9) | AFS1451 | Liner (rear) | Liner | 1 | No |
| 10) | AFS2645 | Liner | Liner | 2 | No |
| 11) | AFS1328 | Grate Bar Support | Grate Bar Support | 1 | No |
| 12) | AFS001 | Grate Bar | Grate Bar | 7 | No |
| 13) | VFS194 | Comb For Esprit4/5 Flat Riddle Bar | Comb and Riddle Pull | 1 | No |
| 14) | AFS3525 | Ashpan | Ash Pan | 1 | No |
| 15) | AFS008 | Operating Tool | Operating Tool | 1 | No |
| 16) | AFS3170 | Fuel Retainer | Fuel Retainer | 1 | No |
| 17) | AFS3245 | Carriage Bolts | Miscellaneous | 1 | No |
| 18) | AFS2775 | Hinge (right Hand) | Hinge | 2 | No |
| 19) | AFS1405 | Airwash Knob | Handles and Locks | 3 | No |
| 20) | AFS2715 | Handle Assembly | Handles and Locks | 1 | No |
| 21) | AFS2760 | Complete Fire Door (right) | Door | 1 | No |
| 22) | VFS202 | Slider Plate Rh Door For Esprit 5/7 Duo | Air Inlet | 1 | No |
| 23) | VFS191 | Flat Riddle Bar | Comb and Riddle Pull | 1 | No |
| 24) | AFS2795 | Hinge (left Hand) | Hinge | 2 | No |
| 25) | AFS1361 | Gasket And Glass Clips | Glass and related parts | 1 | No |
| 26) | AFS1010 | Glass Clips | Glass and related parts | 1 | No |
| 27) | ARA010 | Arada Hot Glove | Arada Brand Accessories | 1 | No |
| 4) | AIB11 | Add In Boiler - 1.7kw | Add In Boiler | 1 | Yes |
