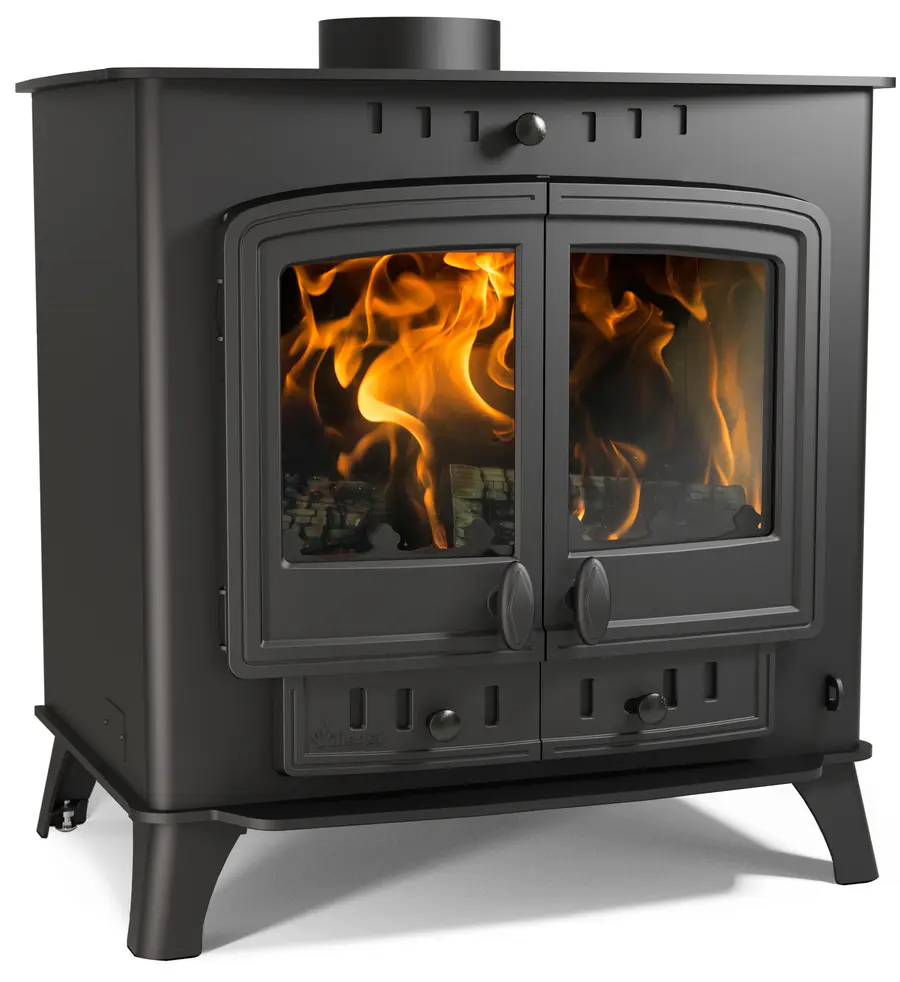

Villager Duo 14
[V14-DUO] Villager Duo 14 (Villager Duo) technical information
Stove model code: V14-DUO
Stove model production status: Discontinued
Information last updated : 08/11/2022
Documentation
| Title | Document type | BK number / revision | Document date |
| Duo 14 | Declaration of Performance | - | - |
Dimensions
| Height (mm): | 685 |
| Width (mm): | 682 |
| Depth (mm): | 489 |
| Height (from top to centre of rear flue) (mm): | 562 |
| Depth (from back to centre of top flue) (mm): | 135 |
| Flue diameter (mm): | 152 |
| Flue outlet type: | Round |
| Weight - when packed (kg): | 140 |
| Weight - when unpacked (kg): | 133 |
| Ideal log length (mm): | 450 |
Distances to combustibles
| Min. combustible distance to rear (mm): | 1250 |
| Min. combustible distance to sides (mm): | 850 |
| Min. combustible distance above (mm): | 457 |
| Please note: We recommend allowing for a minimum clearance of 100mm to non-combustible materials around the entire appliance. | |
Features
| Ecodesign Ready: | No |
| Model Series / Generation: | 1 |
| Wet or Dry stove: | Dry |
| Burns wood fuel: | Yes |
| Burns solid smokeless fuel: | Yes |
| Gas stove: | No |
| Suitable for Smoke Control Areas: | No |
| Stove guarantee: | Lifetime |
| Suitable for a 12mm constructional hearth: | Yes |
| Suitable for direct air installation: | No |
| Stove body type: | Freestanding |
Output - Wood fuel
| Output - wood (kW): | 14.4 |
| Min. output - wood (kW): | 2.5 |
| Max. output - wood (kW): | 16 |
| Nett Efficiency - wood (%): | 73.9 |
| Wood refuelling period: | 1 hour |
Boiler Tappings
| Boiler Tapping Measurement A (mm): | 295 |
| Boiler Tapping Measurement B (mm): | 508 |
| Boiler Tapping Measurement C (mm): | 383 |
Parts list
| Code | Name | Type | Quantity | Optional Extra? | |
| 1) | VFS230 | Slider Plate Lh Door For Esprit 8/10 Duo | Air Inlet | 1 | No |
| 2) | AFS2770 | Handle Assembly | Handles and Locks | 1 | No |
| 3) | AFS2750 | Complete Fire Door (left) | Door | 1 | No |
| 4) | ARA019 | Arada Rope Kit 3 | Door Rope | 1 | No |
| 5) | VFS203 | Glass Kit | Glass and related parts | 2 | No |
| 6) | AFS3195 | 6" Spigot | Spigot | 1 | No |
| 7) | AFS3205 | 6" Hotplate | Hot Plate | 1 | No |
| 8) | AFS3185 | Throat Plate | Throat Plate | 1 | No |
| 9) | AFS3175 | Liner 307 X 150 X 25 | Liner | 2 | No |
| 10) | AFS2975 | Liner 310 X 285 X 25 | Liner | 2 | No |
| 11) | AFS1464 | Grate Bar Support | Grate Bar Support | 1 | No |
| 12) | AFS003 | Grate Bar | Grate Bar | 13 | No |
| 13) | VFS197 | Comb For Esprit10 Flat Riddle Bar | Comb and Riddle Pull | 1 | No |
| 14) | AFS3535 | Ashpan | Ash Pan | 1 | No |
| 15) | AFS008 | Operating Tool | Operating Tool | 1 | No |
| 16) | AFS2745 | Fuel Retainer | Fuel Retainer | 1 | No |
| 17) | AFS3245 | Carriage Bolts | Miscellaneous | 1 | No |
| 18) | AFS2775 | Hinge (right Hand) | Hinge | 2 | No |
| 19) | AFS1405 | Airwash Knob | Handles and Locks | 3 | No |
| 20) | AFS2715 | Handle Assembly | Handles and Locks | 1 | No |
| 21) | AFS2765 | Complete Fire Door (right) | Door | 1 | No |
| 22) | VFS235 | Slider Plate Rh Door For Esprit8/10 Duo | Air Inlet | 1 | No |
| 23) | VFS191 | Flat Riddle Bar | Comb and Riddle Pull | 1 | No |
| 24) | AFS2795 | Hinge (left Hand) | Hinge | 2 | No |
| 25) | AFS1361 | Gasket And Glass Clips | Glass and related parts | 1 | No |
| 26) | AFS1010 | Glass Clips | Glass and related parts | 1 | No |
| 27) | ARA010 | Arada Hot Glove | Arada Brand Accessories | 1 | No |
| 4) | AIBV017 | Add In Boiler - 3.4kw | Add In Boiler | 1 | Yes |
