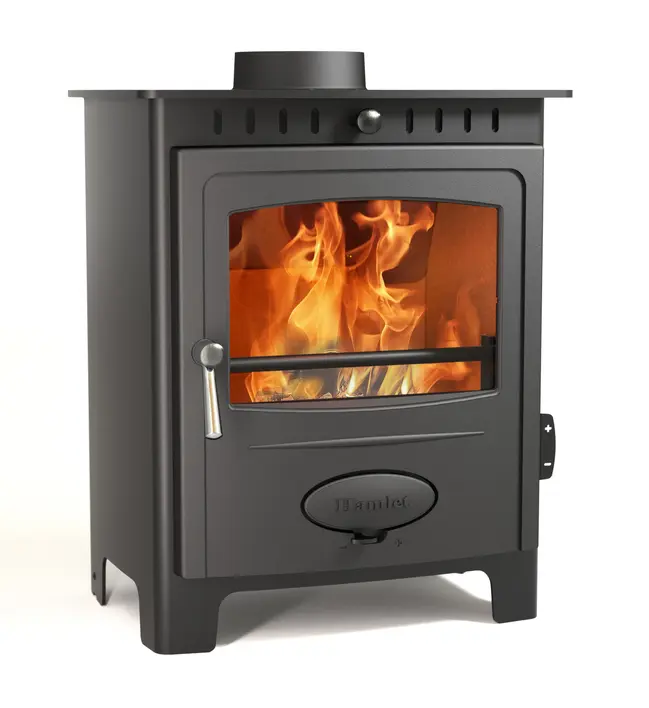

Solution 7 Multifuel CE Series 2
[SOL7MCE-S2] Solution 7 Multifuel CE Series 2 (Solution 7) technical information
Stove model code: SOL7MCE-S2
Stove model production status: Discontinued
Information last updated : 08/11/2022
Documentation
| Title | Document type | BK number / revision | Document date |
| Hamlet stove User Guide | User Guide | BK540 / rev4 | 01-08-2017 |
| Solution 7 | Declaration of Performance | - | - |
Dimensions
| Height (mm): | 558 |
| Width (mm): | 476 |
| Depth (mm): | 386 |
| Height (from top to centre of rear flue) (mm): | 449 |
| Height of low canopy (mm): | 180 |
| Height of high canopy (mm): | 245 |
| Height of stand (mm): | 100 |
| Depth (from back to centre of top flue) (mm): | 109 |
| Flue diameter (mm): | 127 |
| Weight - when packed (kg): | 68 |
| Ideal log length (mm): | 300 |
Distances to combustibles
| Min. combustible distance to rear (mm): | 650 |
| Min. combustible distance to sides (mm): | 450 |
| Min. combustible distance above (mm): | 381 |
| Please note: We recommend allowing for a minimum clearance of 100mm to non-combustible materials around the entire appliance. | |
Features
| Ecodesign Ready: | No |
| Model Series / Generation: | 2 |
| Wet or Dry stove: | Dry |
| Burns wood fuel: | Yes |
| Burns solid smokeless fuel: | Yes |
| Gas stove: | No |
| Suitable for Smoke Control Areas: | No |
| Stove guarantee: | Ten-year |
| Suitable for a 12mm constructional hearth: | Yes |
| Suitable for direct air installation: | No |
| Stove body type: | Freestanding |
Output - Wood fuel
| Output - wood (kW): | 6.14 |
| Min. output - wood (kW): | 1.5 |
| Max. output - wood (kW): | 6 |
| Nett Efficiency - wood (%): | 72.1 |
| Mean CO Emission - wood (%): | 0.68 |
Output - CE Test Figures
| CE rated nominal output kW: | 8.8 |
| CE rated min output kW: | 2.0 |
| CE rated max output kW: | 11.0 |
| CE rated under hearth temperature (deg.C): | 45.0 |
Boiler Tappings
| Boiler Tapping Measurement A (mm): | 245 |
| Boiler Tapping Measurement B (mm): | 264 |
| Boiler Tapping Measurement C (mm): | 336 |
Parts list
| Code | Name | Type | Quantity | Optional Extra? | |
| 1) | AFS3140 | Handle | Handles and Locks | 1 | No |
| 2) | AFS3135 | Handle Assembly | Handles and Locks | 1 | No |
| 3) | AFS1295 | Fire Door Complete | Door | 1 | No |
| 4) | ARA014 | Arada Rope Kit 2 | Arada Brand Accessories | 1 | No |
| 5) | AFS1215 | Glass Kit | Glass and related parts | 1 | No |
| 6) | AFS009 | 5 Inch Flue Spigot | Spigot | 1 | No |
| 7) | AFS010 | 5 Inch Hot Plate | Hot Plate | 1 | No |
| 8) | AFS1287 | Throat Plate | Throat Plate | 1 | No |
| 9) | AFS3020 | Liner 160 X 177 X 25 | Liner | 2 | No |
| 10) | AFS2670 | Liner | Liner | 2 | No |
| 11) | AFS2705 | Self Levelling Feet | Feet | 2 | No |
| 12) | AFS1328 | Grate Bar Support | Grate Bar Support | 1 | No |
| 13) | AFS001 | Grate Bar | Grate Bar | 7 | No |
| 15) | AFS1324 | Comb With Extension | Comb and Riddle Pull | 1 | No |
| 16) | AFS008 | Operating Tool | Operating Tool | 1 | No |
| 17) | AFS1394 | Ash Pan | Ash Pan | 1 | No |
| 18) | AFS1192 | Fuel Retainer Bar | Fuel Retainer | 2 | No |
| 19) | AFS1369 | Primary Air Controls | Air Inlet | 1 | No |
| 20) | AFS1405 | Airwash Knob | Handles and Locks | 1 | No |
| 21) | AFS1361 | Gasket And Glass Clips | Glass and related parts | 1 | No |
| 22) | AFS1010 | Glass Clips | Glass and related parts | 1 | No |
| 23) | ARA010 | Arada Hot Glove | Arada Brand Accessories | 1 | No |
| 24) | AFS1412 | +/- Bracket With Fixings | Miscellaneous | 1 | No |
| 5) | AOCSL | Add On Low Canopy For Shbsm B7mu 7gas New Style | Canopy | 1 | Yes |
| 6) | AOCSH | Add On High Canopy | Canopy | 1 | Yes |
| 7) | AIB8 | Add In Boiler - 2.0kw | Add In Boiler | 1 | Yes |
| 8) | AFS1135 | Floor Fixing Kit | Accessories | 1 | Yes |
| 9) | AFS3165 | Safety Handle | Accessories | 1 | Yes |
