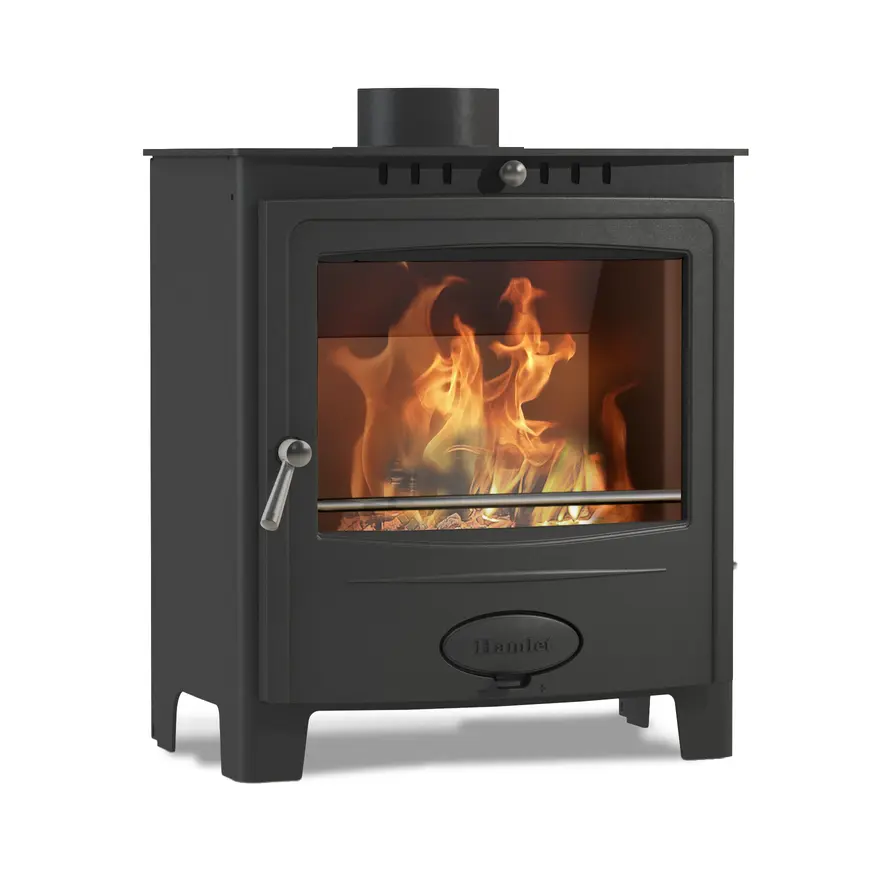

Solution 5 Widescreen
[SOL5MCE-WS] Solution 5 Widescreen (Solution 5) technical information
Stove model code: SOL5MCE-WS
Stove model production status: Discontinued
Information last updated : 08/11/2022
Documentation
| Title | Document type | BK number / revision | Document date |
| Hamlet Solution 5 Widescreen Stove User Guide | User Guide | BK700 / rev2 | 09-11-2017 |
| Spigot or Hotplate Fitting Instructions | Component Installation Guide | BK728 / rev1 | 27-06-2018 |
Dimensions
| Height (mm): | 600 |
| Width (mm): | 541 |
| Depth (mm): | 365 |
| Height (from top to centre of rear flue) (mm): | 484 |
| Height of stand (mm): | 136 |
| Height of log store (mm): | 386 |
| Depth (from back to centre of top flue) (mm): | 108 |
| Flue diameter (mm): | 127 |
| Weight - when packed (kg): | 82 |
| Weight - when unpacked (kg): | 78 |
| Ideal log length (mm): | 380 |
Distances to combustibles
| Min. combustible distance to rear (mm): | 300 |
| Min. combustible distance to sides (mm): | 300 |
| Min. combustible distance above (mm): | 381 |
| Please note: We recommend allowing for a minimum clearance of 100mm to non-combustible materials around the entire appliance. | |
Features
| Ecodesign Ready: | No |
| Model Series / Generation: | 1 |
| Wet or Dry stove: | Dry |
| Burns wood fuel: | Yes |
| Burns solid smokeless fuel: | Yes |
| Gas stove: | No |
| Suitable for Smoke Control Areas: | Yes |
| Stove guarantee: | Ten-year |
| Suitable for a 12mm constructional hearth: | Yes |
| Suitable for direct air installation: | No |
| Stove body type: | Freestanding |
Output - Wood fuel
| Output - wood (kW): | 4.99 |
| Min. output - wood (kW): | 1.5 |
| Max. output - wood (kW): | 9 |
| Nett Efficiency - wood (%): | 79.3 |
Output - CE Test Figures
| CE rated nominal output kW: | 5.0 |
| CE rated min output kW: | 1.0 |
| CE rated max output kW: | 5.0 |
| CE rated under hearth temperature (deg.C): | 62.9 |
Parts list
| Code | Name | Type | Quantity | Optional Extra? | |
| 1) | AFS4415 | Complete Fire Door | Door | 1 | No |
| 2) | ARA014 | Arada Rope Kit 2 | Arada Brand Accessories | 1 | No |
| 3) | AFS1361 | Gasket And Glass Clips | Glass and related parts | 1 | No |
| 4) | AFS4443 | Glass Kit | Glass and related parts | 1 | No |
| 5) | AFS1010 | Glass Clips | Glass and related parts | 1 | No |
| 6) | AFS2775 | Hinge (right Hand) | Hinge | 2 | No |
| 7) | AFS4445 | Primary Air Slider | Air Inlet | 1 | No |
| 8) | AFS3565 | Handle (stainless Steel) | Handles and Locks | 1 | No |
| 9) | AFS4444 | Handle Assembly | Handles and Locks | 1 | No |
| 10) | AFS3945 | Rope Kit | Door Rope | 1 | No |
| 11) | AFS4441 | 5 Inch Flue Spigot | Spigot | 1 | No |
| 12) | VFS063 | Gasket | Miscellaneous | 1 | No |
| 13) | AFS4446 | Hotplate | Hot Plate | 1 | No |
| 14) | AFS3995 | Rear Heat Shield | Miscellaneous | 1 | No |
| 15) | AFS4447 | Throat Plate | Throat Plate | 1 | No |
| 16) | AFS4210 | Liner 315 X 235 X 50 Shaped Lh | Liner | 1 | No |
| 17) | AFS3005 | Liner 249 X 200 X 25 | Liner | 2 | No |
| 18) | AFS1330 | Grate Bar Support (gbs004) | Grate Bar Support | 1 | No |
| 19) | AFS4215 | Liner 315 X 235 X 50 Shaped Rh | Liner | 1 | No |
| 20) | AFS001 | Grate Bar | Grate Bar | 11 | No |
| 21) | AFS3970 | Comb With Extension | Comb and Riddle Pull | 1 | No |
| 22) | AFS3990 | Base Heat Shield | Miscellaneous | 1 | No |
| 23) | AFS4448 | Fuel Retainer & Holder | Fuel Retainer | 1 | No |
| 24) | AFS3965 | Ash Pan | Ash Pan | 1 | No |
| 25) | AFS008 | Operating Tool | Operating Tool | 1 | No |
| 26) | ARA010 | Arada Hot Glove | Arada Brand Accessories | 1 | No |
