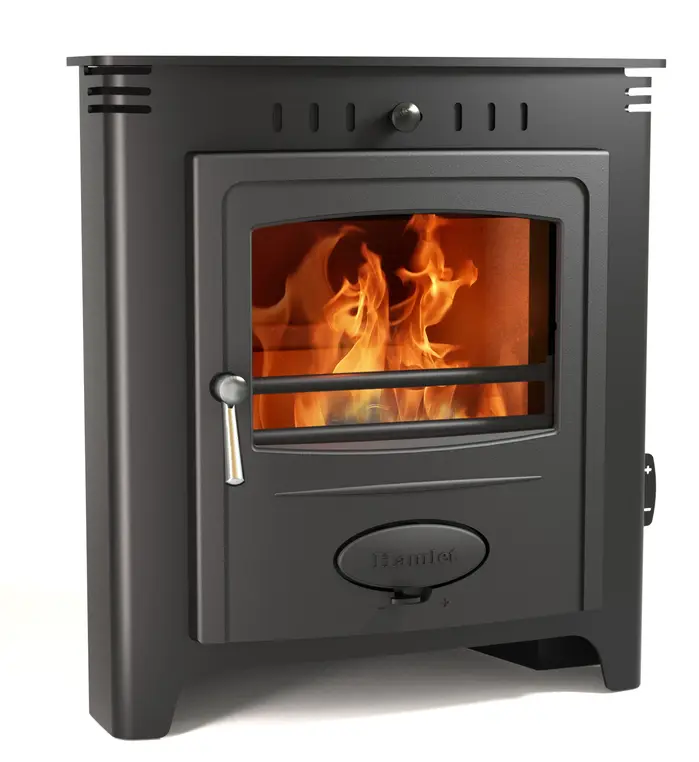

Solution 5 Inset Multifuel Series 2
[SOL5M-INSET-S2] Solution 5 Inset Multifuel Series 2 (Solution 5) technical information
Stove model code: SOL5M-INSET-S2
Stove model production status: Discontinued
Information last updated : 08/11/2022
Documentation
| Title | Document type | BK number / revision | Document date |
| Hamlet stove User Guide | User Guide | BK540 / rev4 | 01-08-2017 |
| Solution 5 Inset | Declaration of Performance | - | - |
Dimensions
| Height (mm): | 590 |
| Width (mm): | 545 |
| Depth (mm): | 362 |
| Depth into fireplace (mm): | 190 |
| Height into fireplace (mm): | 535 |
| Width into fireplace (mm): | 372 |
| Min. width in fireplace - inset (mm): | 278 |
| Depth of front fascia - Inset (mm): | 127 |
| Flue diameter (mm): | 127 |
| Flue outlet type: | Letterbox style |
| Weight - when packed (kg): | 68 |
| Ideal log length (mm): | 200 |
Distances to combustibles
| Min. combustible distance to sides (mm): | 300 |
| Min. combustible distance above (mm): | 300 |
| Please note: We recommend allowing for a minimum clearance of 100mm to non-combustible materials around the entire appliance. | |
Features
| Ecodesign Ready: | No |
| Model Series / Generation: | 2 |
| Wet or Dry stove: | Dry |
| Burns wood fuel: | Yes |
| Burns solid smokeless fuel: | Yes |
| Gas stove: | No |
| Suitable for Smoke Control Areas: | No |
| Stove guarantee: | Ten-year |
| Suitable for a 12mm constructional hearth: | No |
| Suitable for direct air installation: | No |
| Stove body type: | Inset |
Output - Wood fuel
| Output - wood (kW): | 4.8 |
| Min. output - wood (kW): | 1 |
| Max. output - wood (kW): | 5 |
| Nett Efficiency - wood (%): | 80.1 |
| Mean CO Emission - wood (%): | 0.50 |
Output - CE Test Figures
| CE rated nominal output kW: | 4.8 |
| CE rated min output kW: | 1.0 |
| CE rated max output kW: | 6.0 |
| CE rated under hearth temperature (deg.C): | 127.0 |
Parts list
| Code | Name | Type | Quantity | Optional Extra? | |
| 1) | AFS2900 | Handle (Nickel) | Handles and Locks | 1 | No |
| 2) | AFS3135 | Handle Assembly | Handles and Locks | 1 | No |
| 3) | AFS1295 | Fire Door Complete | Door | 1 | No |
| 4) | ARA014 | Arada Rope Kit 2 | Arada Brand Accessories | 1 | No |
| 5) | AFS1361 | Gasket And Glass Clips | Glass and related parts | 1 | No |
| 8) | AFS1402 | Throat Plate | Throat Plate | 1 | No |
| 9) | AFS3150 | Liner 190 X 270 X 25 Shaped | Liner | 2 | No |
| 10) | AFS1410 | Liner (rear) | Liner | 1 | No |
| 11) | AFS1327 | Grate Bar Support (gbs001) | Grate Bar Support | 1 | No |
| 12) | AFS1412 | +/- Bracket With Fixings | Miscellaneous | 1 | No |
| 14) | AFS001 | Grate Bar | Grate Bar | 5 | No |
| 15) | AFS1413 | Comb With Extension | Comb and Riddle Pull | 1 | No |
| 16) | AFS008 | Operating Tool | Operating Tool | 1 | No |
| 17) | AFS1395 | Ash Pan | Ash Pan | 1 | No |
| 18) | AFS1192 | Fuel Retainer Bar | Fuel Retainer | 2 | No |
| 19) | AFS1369 | Primary Air Controls | Air Inlet | 1 | No |
| 20) | AFS1405 | Airwash Knob | Handles and Locks | 1 | No |
| 21) | AFS2460 | Hinge (single - Right Hand) | Hinge | 2 | No |
| 22) | AFS1361 | Gasket And Glass Clips | Glass and related parts | 1 | No |
| 23) | AFS1010 | Glass Clips | Glass and related parts | 1 | No |
| 24) | ARA010 | Arada Hot Glove | Arada Brand Accessories | 1 | No |
| 2) | AFS1135 | Floor Fixing Kit | Accessories | 1 | Yes |
| 3) | AFS3165 | Safety Handle | Accessories | 1 | Yes |
| 4) | 5INSETGATHER | Flue Gather Kit Inset 5 - Short Reach Version | Accessories | 1 | Yes |
| 5) | 5INSETGATHER-LONG | Flue Gather Kit Inset 5 - Long Reach Version | Accessories | 1 | Yes |
