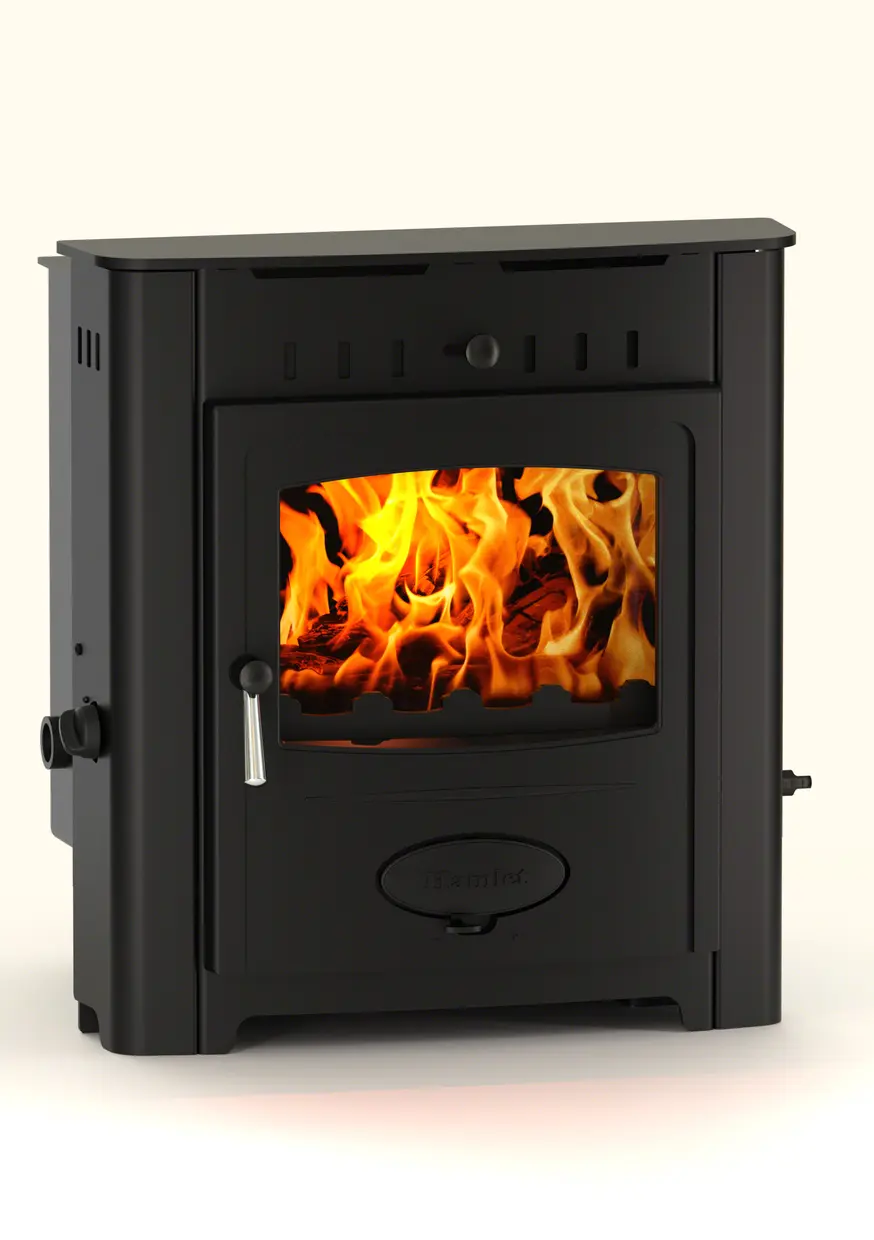

Solution Boiler 9 Inset
[HSB9-INSET] Solution Boiler 9 Inset (Solution 9) technical information
Stove model code: HSB9-INSET
Stove model production status: Discontinued
Information last updated : 08/11/2022
Dimensions
| Flue diameter (mm): | 127 |
Distances to combustibles
| Min. combustible distance to sides (mm): | 150 |
| Min. combustible distance above (mm): | 100 |
| Please note: We recommend allowing for a minimum clearance of 100mm to non-combustible materials around the entire appliance. | |
Features
| Ecodesign Ready: | No |
| Model Series / Generation: | 1 |
| Wet or Dry stove: | Wet |
| Burns wood fuel: | Yes |
| Burns solid smokeless fuel: | Yes |
| Gas stove: | No |
| Suitable for Smoke Control Areas: | No |
| Suitable for a 12mm constructional hearth: | No |
| Suitable for direct air installation: | No |
| Stove body type: | Inset |
Parts list
| Code | Name | Type | Quantity | Optional Extra? | |
| 1) | AFS1405 | Airwash Knob | Handles and Locks | 1 | No |
| 1) | AFS1835 | Side Trims (left & Right) | Trim | 1 | No |
| 1) | AFS1021 | Door Rope Kit | Door Rope | 1 | No |
| 1) | AFS1730 | Fire Door Handle Assembly | Handles and Locks | 1 | No |
| 1) | AFS1215 | Glass Kit | Glass and related parts | 1 | No |
| 1) | AFS2005 | Complete Fire Door | Door | 1 | No |
| 1) | AFS003 | Grate Bar | Grate Bar | 1 | No |
| 1) | AFS1559 | Fuel Retainer | Fuel Retainer | 1 | No |
| 1) | AFS2780 | Hinge Pin | Hinge | 1 | No |
| 1) | AFS047 | Hinge Kit | Hinge | 1 | No |
| 1) | AFS1564 | Thermostat | Boiler Thermostat | 1 | No |
| 1) | AFS2830 | Roll Pin | Door | 1 | No |
| 1) | AFS1219 | Complete Fire Door | Door | 1 | No |
| 1) | AFS1565 | Damper Plate | Throat Plate | 1 | No |
| 1) | AFS2900 | Handle (Nickel) | Handles and Locks | 1 | No |
| 1) | AFS1365 | Gasket And Glass Clips | Glass and related parts | 1 | No |
| 1) | AFS1566 | Comb With Extension | Comb and Riddle Pull | 1 | No |
| 1) | AFS1369 | Primary Air Controls | Air Inlet | 1 | No |
| 1) | AFS1568 | Grate Bar Support | Grate Bar Support | 1 | No |
| 1) | AFS1379 | Thermostat Knob | Boiler Thermostat | 1 | No |
| 1) | AFS1571 | Feds Lower Plate | Throat Plate | 1 | No |
| 1) | AFS1380 | Fire Bed Surround | Grate Bar | 1 | No |
| 1) | AFS1572 | Thermostat | Boiler Thermostat | 1 | No |
| 1) | AFS1396 | Ash Pan | Ash Pan | 1 | No |
| 1) | AFS1830 | (obsolete) Operating Manual Hamlet Solution Inset Boilers | Miscellaneous | 1 | No |
