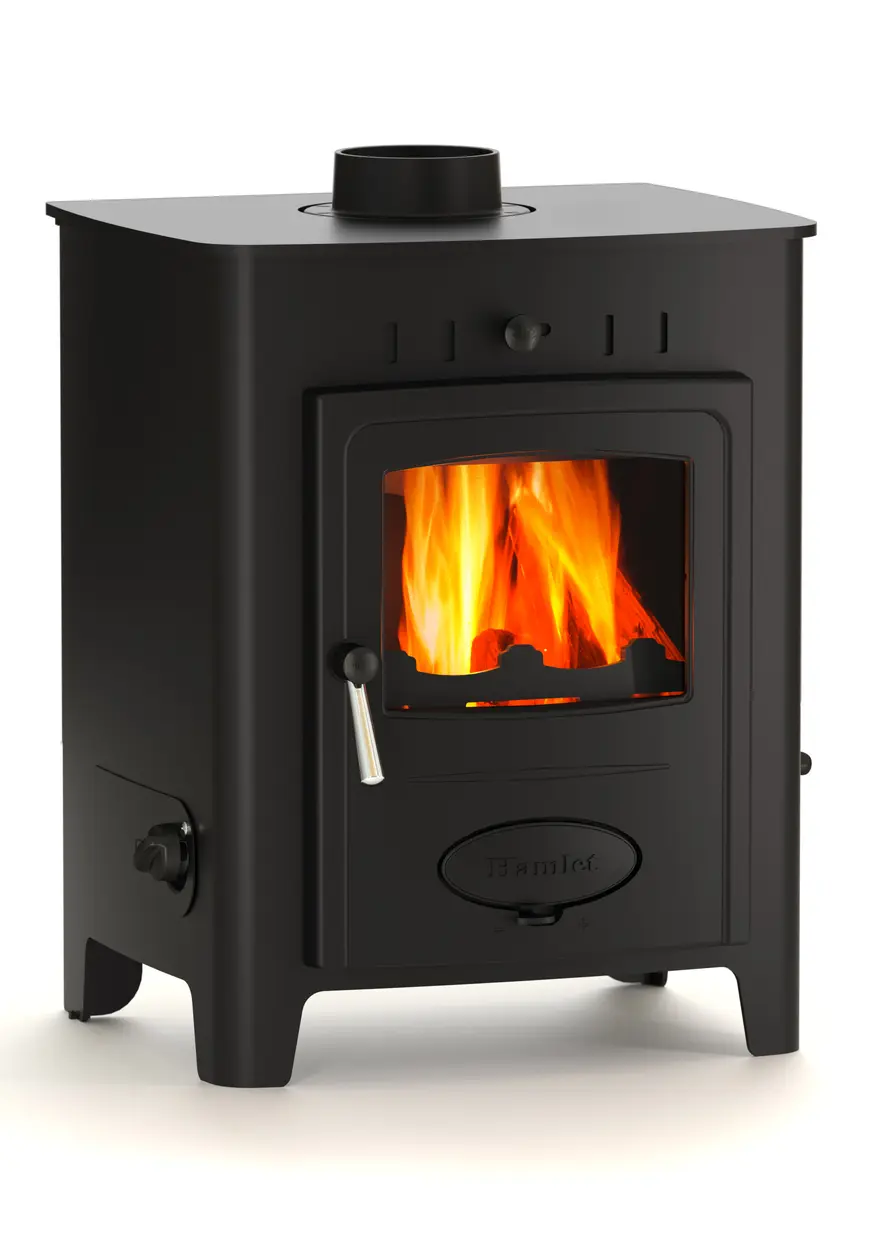

Solution Boiler 9
[HSB9] Solution Boiler 9 (Solution 9) technical information
Stove model code: HSB9
Stove model production status: Discontinued
Information last updated : 08/11/2022
| Height (mm): | 570 |
| Width (mm): | 468 |
| Depth (mm): | 417 |
| Height (from top to centre of rear flue) (mm): | 431 |
| Height of stand (mm): | 125 |
| Depth (from back to centre of top flue) (mm): | 431 |
| Flue diameter (mm): | 101 |
| Weight - when packed (kg): | 110 |
| Ideal log length (mm): | 260 |
| Min. combustible distance to rear (mm): | 140 |
| Min. combustible distance to sides (mm): | 120 |
| Min. combustible distance above (mm): | 306 |
| Please note: We recommend allowing for a minimum clearance of 100mm to non-combustible materials around the entire appliance. |
| Ecodesign Ready: | No |
| Model Series / Generation: | 1 |
| Wet or Dry stove: | Wet |
| Burns wood fuel: | Yes |
| Burns solid smokeless fuel: | Yes |
| Gas stove: | No |
| Suitable for Smoke Control Areas: | No |
| Stove guarantee: | Seven-year |
| Suitable for a 12mm constructional hearth: | Yes |
| Suitable for direct air installation: | No |
| Stove body type: | Freestanding |
| Output - wood (kW): | 9 |
| Min. output - wood (kW): | 2 |
| Max. output - wood (kW): | 5 |
| Output to water - wood - boiler stove (kW): | 7.5 |
| Output to water - wood - boiler stove (BTU): | 25605 |
| Nett Efficiency - wood (%): | 75.2 |
| Output to water - solid - boiler stove (kW): | 9 |
| Output to water - solid - boiler stove (BTU): | 30726 |
| Boiler Tapping Measurement A (mm): | 260 |
| Boiler Tapping Measurement B (mm): | 288 |
| Boiler Tapping Measurement C (mm): | 255 |
| Boiler Tapping Measurement D (mm): | 356 |
| Max Operating Pressure: | 3 |
| | Code | Name | Type | Quantity | Optional Extra? |
No parts listed for this stove
