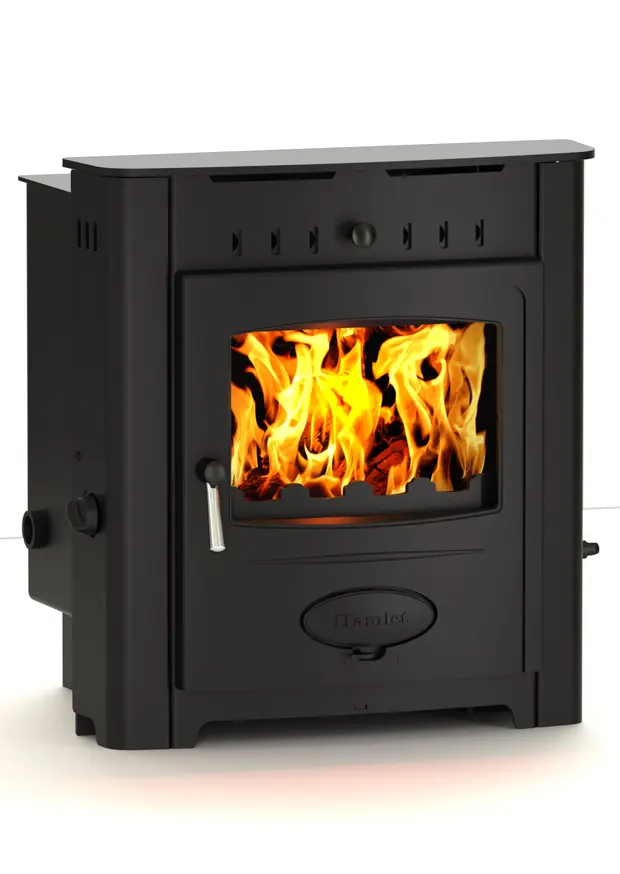

Solution Boiler 12 Inset Series 2
[HSB12-INSET-G2] Solution Boiler 12 Inset Series 2 (Solution 12) technical information
Stove model code: HSB12-INSET-G2
Stove model production status: Discontinued
Information last updated : 08/11/2022
| Height (mm): | 590 |
| Width (mm): | 581 |
| Depth (mm): | 532 |
| Depth into fireplace (mm): | 353 |
| Height into fireplace (mm): | 548 |
| Width into fireplace (mm): | 392 |
| Depth of front fascia - Inset (mm): | 179 |
| Depth (from back to centre of top flue) (mm): | 110 |
| Flue diameter (mm): | 127 |
| Weight - when packed (kg): | 114 |
| Ideal log length (mm): | 305 |
| Min. combustible distance to sides (mm): | 150 |
| Min. combustible distance above (mm): | 75 |
| Please note: We recommend allowing for a minimum clearance of 100mm to non-combustible materials around the entire appliance. |
| Ecodesign Ready: | No |
| Model Series / Generation: | 2 |
| Wet or Dry stove: | Wet |
| Burns wood fuel: | Yes |
| Burns solid smokeless fuel: | Yes |
| Gas stove: | No |
| Suitable for Smoke Control Areas: | No |
| Stove guarantee: | Seven-year |
| Suitable for a 12mm constructional hearth: | Yes |
| Suitable for direct air installation: | No |
| Stove body type: | Inset |
| Output - wood (kW): | 11.6 |
| Min. output - wood (kW): | 2 |
| Max. output - wood (kW): | 5 |
| Output to water - wood - boiler stove (kW): | 10 |
| Output to water - wood - boiler stove (BTU): | 34140 |
| Nett Efficiency - wood (%): | 72.7 |
| Output to water - solid - boiler stove (kW): | 12 |
| Output to water - solid - boiler stove (BTU): | 40968 |
| Boiler Tapping Measurement A (mm): | 139 |
| Boiler Tapping Measurement B (mm): | 165 |
| Boiler Tapping Measurement C (mm): | 49 |
| Boiler Tapping Measurement D (mm): | 345 |
| Boiler Tapping Measurement E (mm): | 172 |
| Boiler Tapping Measurement F (mm): | 165 |
| Boiler Tapping Measurement G (mm): | 49 |
| Boiler Tapping Measurement H (mm): | 139 |
| Boiler Tapping Measurement I (mm): | 172 |
| Boiler Tapping Measurement K (mm): | 345 |
| Max Operating Pressure: | 3 |
| | Code | Name | Type | Quantity | Optional Extra? |
| 2) | AFS3165 | Safety Handle | Accessories | 1 | Yes |
