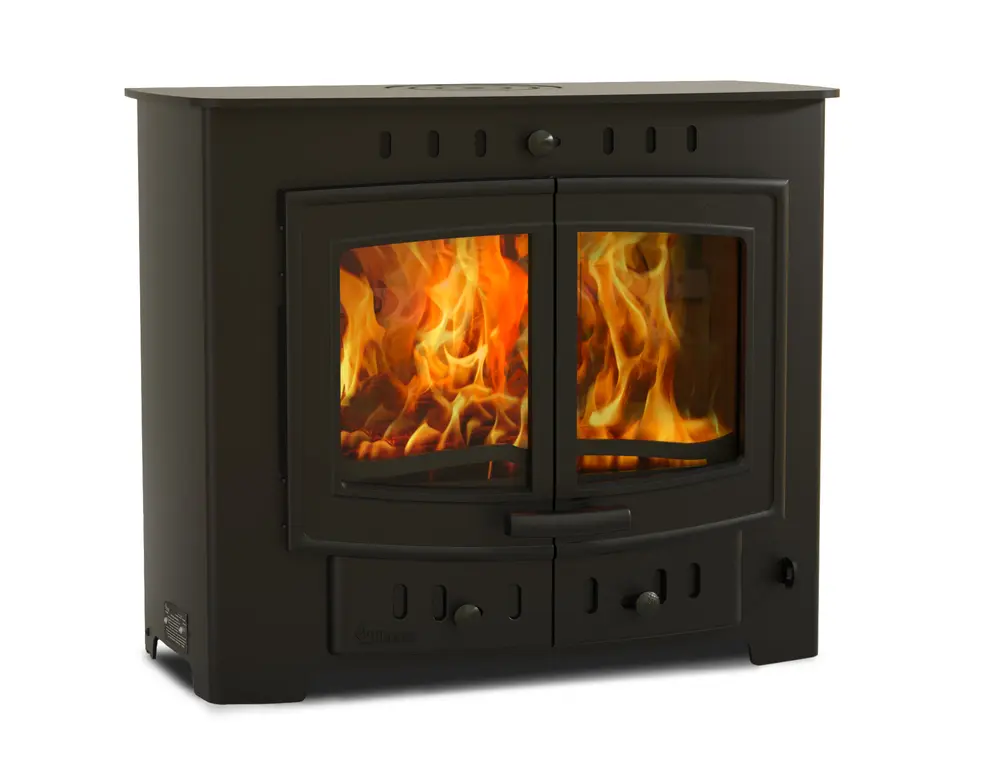

Esprit 10 Flexi Fuel Duo
[ESPRIT10F-DUO] Esprit 10 Flexi Fuel Duo (Esprit 10) technical information
Stove model code: ESPRIT10F-DUO
Stove model production status: Discontinued
Information last updated : 08/11/2022
Dimensions
| Flue diameter (mm): | 127 |
Distances to combustibles
| Min. combustible distance to rear (mm): | 1100 |
| Min. combustible distance to sides (mm): | 600 |
| Min. combustible distance above (mm): | 381 |
| Please note: We recommend allowing for a minimum clearance of 100mm to non-combustible materials around the entire appliance. | |
Features
| Ecodesign Ready: | No |
| Model Series / Generation: | 1 |
| Wet or Dry stove: | Dry |
| Burns wood fuel: | Yes |
| Burns solid smokeless fuel: | Yes |
| Gas stove: | No |
| Suitable for Smoke Control Areas: | No |
| Suitable for a 12mm constructional hearth: | No |
| Suitable for direct air installation: | No |
| Stove body type: | Freestanding |
Parts list
| Code | Name | Type | Quantity | Optional Extra? | |
| 1) | AFS1474 | Door Rope Kit | Door Rope | 1 | No |
| 1) | AFS1586 | Flexi Grate Bar - Small | Grate Bar | 1 | No |
| 1) | AFS009 | 5 Inch Flue Spigot | Spigot | 1 | No |
| 1) | AFS2795 | Hinge (left Hand) | Hinge | 1 | No |
| 1) | AFS1475 | Liner Set | Liner | 1 | No |
| 1) | VFS200 | Fire Door Handle | Handles and Locks | 1 | No |
| 1) | AFS010 | 5 Inch Hot Plate | Hot Plate | 1 | No |
| 1) | AFS2785 | Hinge Pin | Hinge | 1 | No |
| 1) | AIBV017 | Add In Boiler - 3.4kw | Add In Boiler | 1 | No |
| 1) | VFS203 | Glass Kit | Glass and related parts | 1 | No |
| 1) | AFS1069 | Liner (rear Or Side) | Liner | 1 | No |
| 1) | AFS2810 | Handle | Handles and Locks | 1 | No |
| 1) | AOCVE10L | Add On Canopy Low Esprit 10 | Canopy | 1 | No |
| 1) | VFS220 | Left Hand Door | Door | 1 | No |
| 1) | AFS1279 | Hinge Kit | Hinge | 1 | No |
| 1) | AFS2805 | Handle Shaft | Handles and Locks | 1 | No |
| 1) | AOCVE10H | Add On Canopy High Esprit 10 | Canopy | 1 | No |
| 1) | VFS225 | Right Hand Door | Door | 1 | No |
| 1) | AFS1365 | Gasket And Glass Clips | Glass and related parts | 1 | No |
| 1) | AFS2925 | Ashpan Guide | Ash Pan | 1 | No |
| 1) | AFS1527 | Throat Plate | Throat Plate | 1 | No |
| 1) | VFS230 | Slider Plate Lh Door For Esprit 8/10 Duo | Air Inlet | 1 | No |
| 1) | AFS1405 | Airwash Knob | Handles and Locks | 1 | No |
| 1) | LOGVSDE10-S2 | Logstore For Esprit10 Series 2 | Log Store | 1 | No |
| 1) | VFS235 | Slider Plate Rh Door For Esprit8/10 Duo | Air Inlet | 1 | No |
| 1) | AFS1422 | Ash Pan | Ash Pan | 1 | No |
| 1) | STANDVSDE10-S2 | Stand For Esprit10 Series 2 | Stand | 1 | No |
| 1) | AFS1614 | Fuel Retainer (curved) | Fuel Retainer | 1 | No |
| 1) | AFS1464 | Grate Bar Support | Grate Bar Support | 1 | No |
| 1) | VFS191 | Flat Riddle Bar | Comb and Riddle Pull | 1 | No |
| 1) | AFS1618 | Fuel Retainer (curved) | Fuel Retainer | 1 | No |
| 1) | AFS1465 | Tertiary Air Bar & Fixings | Air Inlet | 1 | No |
| 1) | VFS192 | (obsolete)operating & Instruction – Esprit Double Door Range | Miscellaneous | 1 | No |
| 1) | AFS2460 | Hinge (single - Right Hand) | Hinge | 1 | No |
| 1) | AFS1467 | Liner (rear) | Liner | 1 | No |
| 1) | VFS197 | Comb For Esprit10 Flat Riddle Bar | Comb and Riddle Pull | 1 | No |
| 1) | AFS2775 | Hinge (right Hand) | Hinge | 1 | No |
