Ecoburn Plus 5 Widescreen

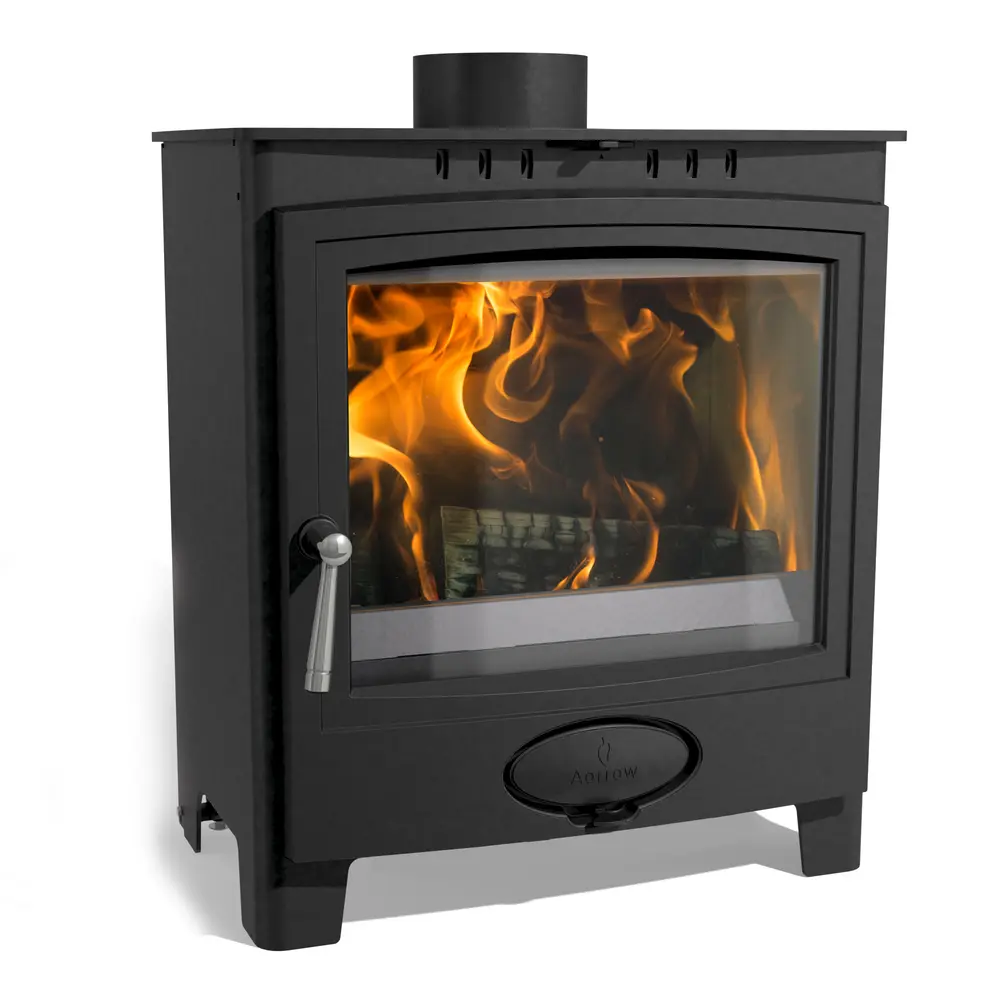

Image of Arada Ecoburn Plus 5 Widescreen stove

[ECB5FPLUS-WS] Ecoburn Plus 5 Widescreen (Ecoburn Plus 5) technical information

Stove model code: ECB5FPLUS-WS

Stove model production status: Discontinued

First produced: August 2016

Last produced: February 2018

Information last updated : 26/01/2023

Documentation

TitleDocument typeBK number / revisionDocument date
Aarrow User GuideUser GuideBK530 / rev1401-11-2016
Ecoburn Plus 5 WidescreenDeclaration of Performance--
Spigot or Hotplate Fitting InstructionsComponent Installation GuideBK728 / rev127-06-2018

Dimensions

Height (mm):600
Width (mm):541
Depth (mm):365
Height (from top to centre of rear flue) (mm):484
Height of stand (mm):136
Height of log store (mm):386
Depth (from back to centre of top flue) (mm):108
Flue diameter (mm):127
Weight - when packed (kg):82
Weight - when unpacked (kg):78
Ideal log length (mm):380

Distances to combustibles

Min. combustible distance to rear (mm):300
Min. combustible distance to sides (mm):300
Min. combustible distance above (mm):381
Please note: We recommend allowing for a minimum clearance of 100mm to non-combustible materials around the entire appliance.

Features

Ecodesign Ready:No
Model Series / Generation:1
Wet or Dry stove:Dry
Burns wood fuel:Yes
Burns solid smokeless fuel:Yes
Gas stove:No
Suitable for Smoke Control Areas:Yes
Stove guarantee:Lifetime
Suitable for a 12mm constructional hearth:Yes
Suitable for direct air installation:No
Stove body type:Freestanding

Output - Wood fuel

Output - wood (kW):4.99
Min. output - wood (kW):1.5
Max. output - wood (kW):9
Nett Efficiency - wood (%):79.3

Output - CE Test Figures

CE rated nominal output kW:5.0
CE rated min output kW:1.0
CE rated max output kW:5.0
CE rated under hearth temperature (deg.C):62.9

Parts list

 CodeNameTypeQuantityOptional Extra?
1)AFS3950Complete Fire DoorDoor1No
2)ARA014Arada Rope Kit 2 Arada Brand Accessories1No
3)AFS1361Gasket And Glass Clips Glass and related parts1No
4)AFS3955Glass KitGlass and related parts1No
5)AFS1010Glass Clips Glass and related parts1No
6)AFS2775Hinge (right Hand) Hinge2No
7)AFS2680Primary Air Controls Air Inlet1No
8)AFS3575Handle (stainless Steel)Handles and Locks1No
9)AFS3550Handle Assembly (stainless Steel)Door1No
10)AFS38705" SpigotSpigot1No
11)VFS063Gasket Miscellaneous1No
12)AFS3875Hot PlateHot Plate1No
13)AFS3995Rear Heat ShieldMiscellaneous1No
14)AFS3975Throat PlateThroat Plate1No
15)AFS4210Liner 315 X 235 X 50 Shaped LhLiner1No
16)AFS3005Liner 249 X 200 X 25Liner2No
17)AFS1330Grate Bar Support (gbs004) Grate Bar Support1No
18)AFS4215Liner 315 X 235 X 50 Shaped RhLiner1No
19)AFS2375Flexi Grate Bar - Small Grate Bar11No
20)AFS3970Comb With ExtensionComb and Riddle Pull1No
21)AFS3990Base Heat ShieldMiscellaneous1No
22)AFS4020Fuel RetainerFuel Retainer1No
23)AFS3965Ash PanAsh Pan1No
24)AFS008Operating Tool Operating Tool1No
25)ARA010Arada Hot Glove Arada Brand Accessories1No
1)STAND-ECB9FPLUSStand For Ecb9fplusStand1Yes
2)LOG-ECB9FPLUSLogstore For Ecb9fplusLog Store1Yes
4)ADP565-6 Flue Increasing Adapter Accessories1Yes
6)AFS3645Bolt Down Brackets (pair)Accessories1Yes
7)AFS3165Safety HandleAccessories1Yes
