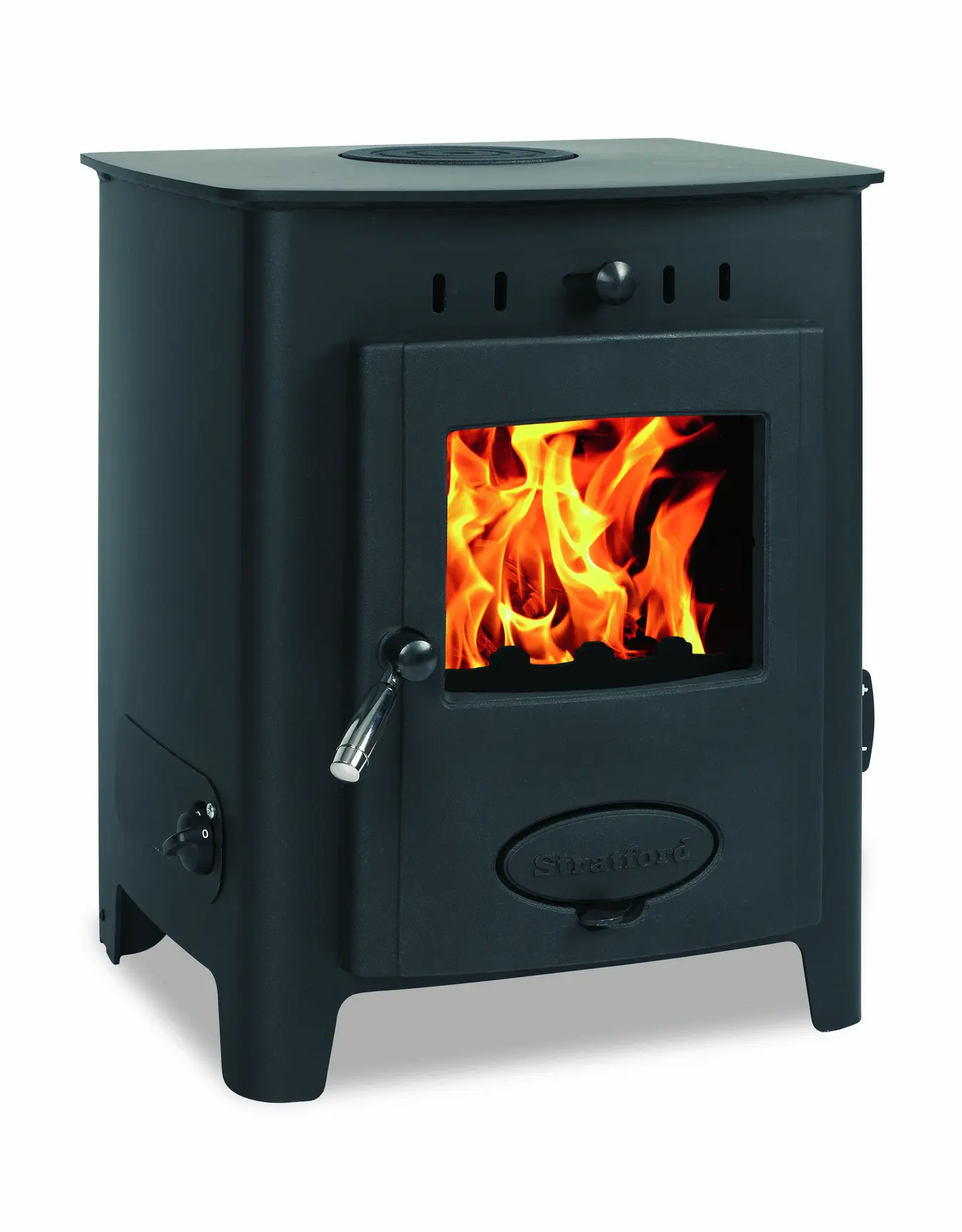

Ecoboiler 9HE
[EB9HE] Ecoboiler 9HE (Ecoboiler 9) technical information
Stove model code: EB9HE
Stove model production status: Discontinued
Information last updated : 08/11/2022
Dimensions
| Height (mm): | 570 |
| Width (mm): | 466 |
| Depth (mm): | 417 |
| Height (from top to centre of rear flue) (mm): | 431 |
| Height of stand (mm): | 125 |
| Depth (from back to centre of top flue) (mm): | 144 |
| Flue diameter (mm): | 102 |
| Weight - when packed (kg): | 112 |
| Ideal log length (mm): | 280 |
Distances to combustibles
| Min. combustible distance to rear (mm): | 140 |
| Min. combustible distance to sides (mm): | 120 |
| Min. combustible distance above (mm): | 306 |
| Please note: We recommend allowing for a minimum clearance of 100mm to non-combustible materials around the entire appliance. | |
Features
| Ecodesign Ready: | No |
| Model Series / Generation: | 1 |
| Wet or Dry stove: | Wet |
| Burns wood fuel: | Yes |
| Burns solid smokeless fuel: | Yes |
| Gas stove: | No |
| Suitable for Smoke Control Areas: | No |
| Suitable for a 12mm constructional hearth: | No |
| Suitable for direct air installation: | No |
| Stove body type: | Freestanding |
Output - Wood fuel
| Min. output - wood (kW): | 1 |
| Max. output - wood (kW): | 9 |
| Output to water - wood - boiler stove (kW): | 8 |
| Output to water - wood - boiler stove (BTU): | 27312 |
| Nett Efficiency - wood (%): | 71.8 |
Output - Solid smokeless fuel
| Output to water - solid - boiler stove (kW): | 9 |
| Output to water - solid - boiler stove (BTU): | 30726 |
Parts list
| Code | Name | Type | Quantity | Optional Extra? | |
| 1) | AFS1379 | Thermostat Knob | Boiler Thermostat | 1 | No |
| 2) | AFS1321 | Thermostat Access Panel | Miscellaneous | 1 | No |
| 3) | AFS1564 | Thermostat | Boiler Thermostat | 1 | No |
| 4) | AFS1570 | Thermostat Mounting Bracket | Boiler Thermostat | 1 | No |
| 5) | AFS1565 | Damper Plate | Throat Plate | 1 | No |
| 6) | AFS1405 | Airwash Knob | Handles and Locks | 1 | No |
| 7) | AFS1453 | Glass Kit | Glass and related parts | 1 | No |
| 8) | AFS1021 | Door Rope Kit | Door Rope | 1 | No |
| 9) | AFS1540 | Complete Fire Door | Door | 1 | No |
| 10) | AFS1385 | Fire Door Handle Assembly | Handles and Locks | 1 | No |
| 11) | AFS1521 | Primary Air Controls | Air Inlet | 1 | No |
| 12) | AFS009A | 4 Inch Flue Spigot | Spigot | 1 | No |
| 13) | AFS009B | 4 Inch Hot Plate | Hot Plate | 1 | No |
| 14) | AFS1541 | Feds Lower Plate | Throat Plate | 1 | No |
| 15) | AFS1380 | Fire Bed Surround | Grate Bar | 1 | No |
| 16) | AFS1539 | Grate Bar Support | Grate Bar Support | 1 | No |
| 17) | AFS001 | Grate Bar | Grate Bar | 7 | No |
| 18) | AFS1324 | Comb With Extension | Comb and Riddle Pull | 1 | No |
| 19) | AFS2460 | Hinge (single - Right Hand) | Hinge | 2 | No |
| 20) | AFS1865 | Fuel Retainer | Fuel Retainer | 1 | No |
| 21) | AFS058 | Ash Pan | Ash Pan | 1 | No |
| 22) | AFS008 | Operating Tool | Operating Tool | 1 | No |
| 23) | AFS3365 | Feds Plate | Throat Plate | 1 | No |
