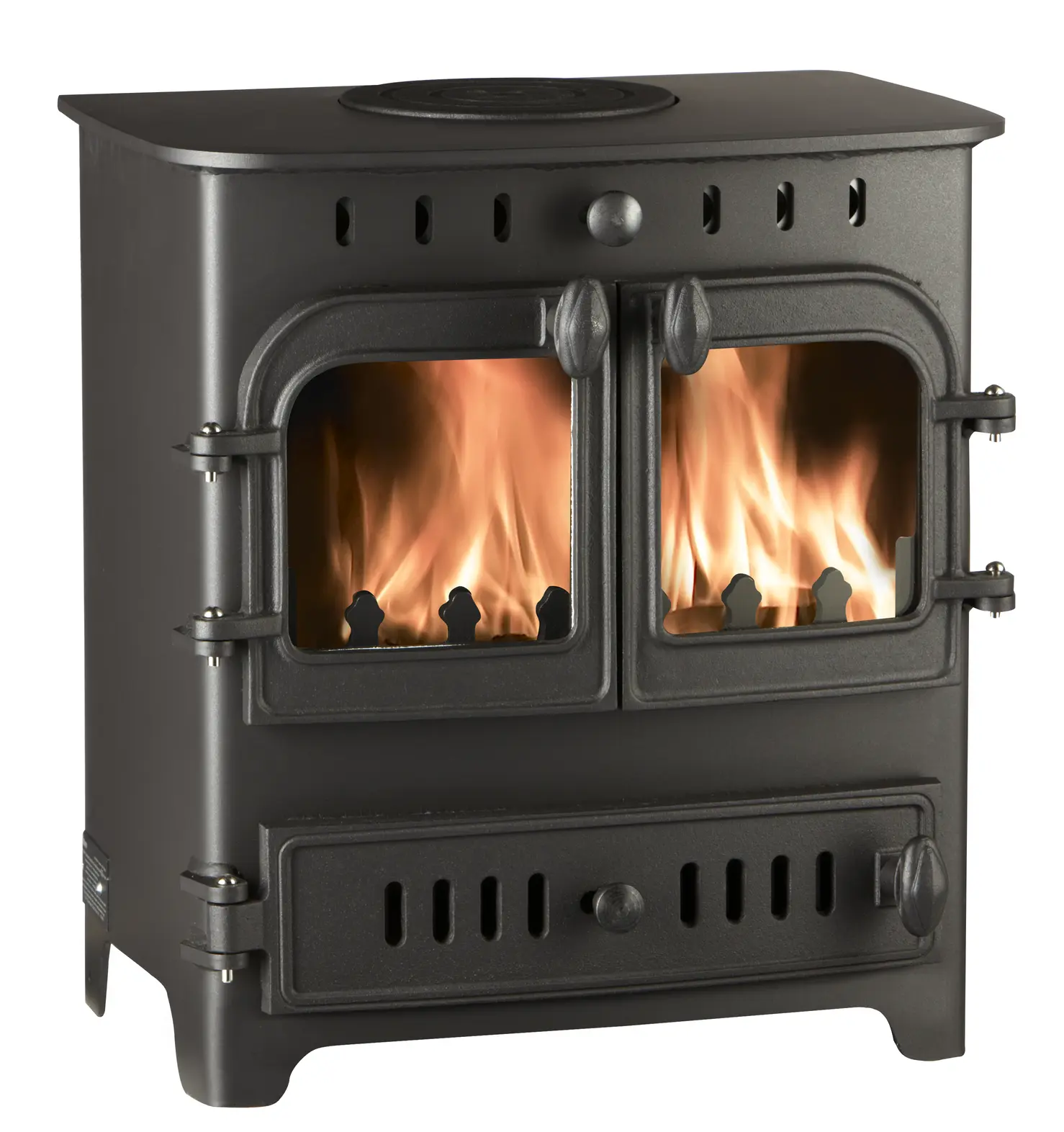

Chelsea Duo Multifuel Series 4
[CHELSEADUOM-S4] Chelsea Duo Multifuel Series 4 (Chelsea Duo) technical information
Stove model code: CHELSEADUOM-S4
Stove model production status: Discontinued
Information last updated : 08/11/2022
Documentation
| Title | Document type | BK number / revision | Document date |
| Chelsea Duo | Declaration of Performance | - | - |
| Guide to Wood Burning | New User Guides | - | - |
| Quick Start Guide | New User Guides | - | - |
| Room heater / Dry Stove Installation Guide | Installation Guide | BK545 / rev11 | 07-12-2018 |
| Villager stove User Guide | User Guide | BK550 / rev9 | 01-04-2016 |
Dimensions
| Height (mm): | 495 |
| Width (mm): | 457 |
| Depth (mm): | 334 |
| Height (from top to centre of rear flue) (mm): | 375 |
| Height of low canopy (mm): | 143.5 |
| Height of high canopy (mm): | 236 |
| Height of stand (mm): | 200 |
| Total height with stand (mm): | 695 |
| Depth (from back to centre of top flue) (mm): | 102 |
| Flue diameter (mm): | 127 |
| Weight - when packed (kg): | 62 |
| Ideal log length (mm): | 300 |
Distances to combustibles
| Min. combustible distance to rear (mm): | 700 |
| Min. combustible distance to sides (mm): | 500 |
| Min. combustible distance above (mm): | 380 |
| Please note: We recommend allowing for a minimum clearance of 100mm to non-combustible materials around the entire appliance. | |
Features
| Ecodesign Ready: | No |
| Model Series / Generation: | 4 |
| Wet or Dry stove: | Dry |
| Burns wood fuel: | Yes |
| Burns solid smokeless fuel: | Yes |
| Gas stove: | No |
| Suitable for Smoke Control Areas: | No |
| Stove guarantee: | Lifetime |
| Suitable for a 12mm constructional hearth: | Yes |
| Suitable for direct air installation: | No |
| Stove body type: | Freestanding |
Output - Wood fuel
| Output - wood (kW): | 5 |
| Min. output - wood (kW): | 1 |
| Max. output - wood (kW): | 6.5 |
| Nett Efficiency - wood (%): | 71.7 |
| Mean CO Emission - wood (%): | 0.35 |
Output - CE Test Figures
| CE rated nominal output kW: | 5.6 |
| CE rated min output kW: | 1.0 |
| CE rated max output kW: | 6.0 |
| CE rated under hearth temperature (deg.C): | 59.8 |
Boiler Tappings
| Boiler Tapping Measurement A (mm): | 208 |
| Boiler Tapping Measurement B (mm): | 252 |
| Boiler Tapping Measurement C (mm): | 412 |
Parts list
| Code | Name | Type | Quantity | Optional Extra? | |
| 1) | VFS038 | Complete Fire Door (left) | Door | 1 | No |
| 2) | VFS039 | Fire Door Complete (right) | Door | 1 | No |
| 3) | VFS172 | Door Latch Assembly | Handles and Locks | 1 | No |
| 4) | VFS045 | Handle | Handles and Locks | 3 | No |
| 5) | ARA013 | Arada Rope Kit 1 | Arada Brand Accessories | 1 | No |
| 6) | VFS073 | Glass And Gasket | Glass and related parts | 2 | No |
| 7) | AFS009 | 5 Inch Flue Spigot | Spigot | 1 | No |
| 8) | AFS010 | 5 Inch Hot Plate | Hot Plate | 1 | No |
| 9) | VFS176 | Throat Plate | Throat Plate | 1 | No |
| 10) | VFS029 | Liner | Liner | 5 | No |
| 11) | VFS112 | Hinge Pin 1 Inch | Hinge | 4 | No |
| 12) | VFS138 | Riddle Bar | Comb and Riddle Pull | 4 | No |
| 13) | VFS101 | Grate | Grate Bar | 1 | No |
| 14) | VFS142 | Rocker | Comb and Riddle Pull | 1 | No |
| 15) | AP504 | Ash Pan | Ash Pan | 1 | No |
| 16) | VFS128 | Operating Tool (4mm) | Operating Tool | 1 | No |
| 17) | VFS174 | Ashpit Door Latch Assembly | Handles and Locks | 1 | No |
| 18) | VFS003 | Ashpit Door | Door | 1 | No |
| 19) | AFS1405 | Airwash Knob | Handles and Locks | 2 | No |
| 20) | VFS163 | Ashpit Door Slider Plate | Air Inlet | 1 | No |
| 21) | VFS177 | Log Retainer | Fuel Retainer | 1 | No |
| 22) | VFS110 | Ashpit Hinge Pin 2 Inch | Hinge | 1 | No |
| 23) | VFS206 | Glass Clip Complete With Nut (pack Of 4) | Glass and related parts | 4 | No |
| 24) | ARA010 | Arada Hot Glove | Arada Brand Accessories | 1 | No |
| 3) | AOCV012 | Add On Canopy Low | Canopy | 1 | Yes |
| 4) | AOCV013 | Add On Canopy High | Canopy | 1 | Yes |
| 5) | AIBV007 | Add In Boiler - 1.8kw | Add In Boiler | 1 | Yes |
