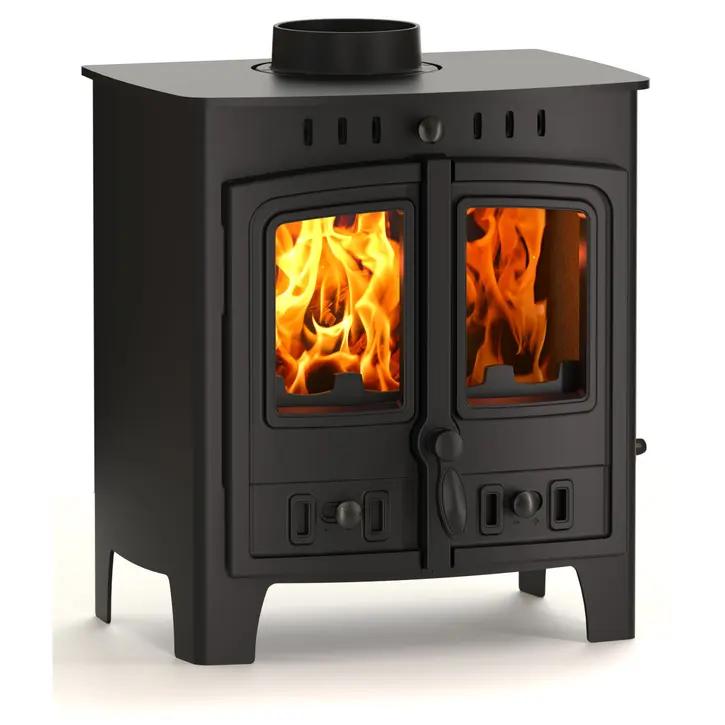

Camborne Deluxe Small Series 2
[CAMDLSM-G2] Camborne Deluxe Small Series 2 (Camborne Deluxe) technical information
Stove model code: CAMDLSM-G2
Stove model production status: Discontinued
Information last updated : 08/11/2022
Dimensions
| Height (mm): | 530 |
| Width (mm): | 477 |
| Depth (mm): | 386 |
| Height (from top to centre of rear flue) (mm): | 423 |
| Height of low canopy (mm): | 180 |
| Height of high canopy (mm): | 245 |
| Height of stand (mm): | 200 |
| Depth (from back to centre of top flue) (mm): | 103 |
| Flue diameter (mm): | 127 |
| Weight - when packed (kg): | 71 |
| Ideal log length (mm): | 300 |
Features
| Ecodesign Ready: | No |
| Model Series / Generation: | 2 |
| Wet or Dry stove: | Dry |
| Burns wood fuel: | Yes |
| Burns solid smokeless fuel: | Yes |
| Gas stove: | No |
| Suitable for Smoke Control Areas: | No |
| Suitable for a 12mm constructional hearth: | No |
| Suitable for direct air installation: | No |
| Stove body type: | Freestanding |
Output - Wood fuel
| Min. output - wood (kW): | 1 |
| Max. output - wood (kW): | 5 |
| Nett Efficiency - wood (%): | 81 |
| Mean CO Emission - wood (%): | 0.00 |
Output - CE Test Figures
| CE rated nominal output kW: | 0.0 |
| CE rated min output kW: | 0.0 |
| CE rated max output kW: | 0.0 |
Boiler Tappings
| Boiler Tapping Measurement A (mm): | 239 |
| Boiler Tapping Measurement B (mm): | 315 |
| Boiler Tapping Measurement C (mm): | 294 |
Parts list
| Code | Name | Type | Quantity | Optional Extra? | |
| 1) | AFS1298 | Fire Door Handle Assembly | Handles and Locks | 1 | No |
| 2) | AFS2280 | Primary Air Slider (left Hand) | Air Inlet | 1 | No |
| 3) | AFS1405 | Airwash Knob | Handles and Locks | 2 | No |
| 4) | AFS1281 | Fire Door Complete (left) | Door | 1 | No |
| 5) | AFS2270 | Fire Door (left) | Door | 1 | No |
| 6) | AFS1608 | (obsolete) Installation And Operating Manual For Is-5fcb | Miscellaneous | 1 | No |
| 7) | AFS1278 | Glass Kit | Glass and related parts | 1 | No |
| 8) | AFS009 | 5 Inch Flue Spigot | Spigot | 1 | No |
| 9) | AFS010 | 5 Inch Hot Plate | Hot Plate | 1 | No |
| 10) | AFS2250 | Throat Plate | Throat Plate | 1 | No |
| 11) | AFS1156 | Liner Set | Liner | 1 | No |
| 12) | AFS1451 | Liner (rear) | Liner | 1 | No |
| 13) | AFS1059 | Liner Set (rear) | Liner | 2 | No |
| 14) | AFS1329 | Grate Bar Support | Grate Bar Support | 1 | No |
| 15) | AFS001 | Grate Bar | Grate Bar | 9 | No |
| 16) | AFS1325 | Comb & Extension Bar | Comb and Riddle Pull | 1 | No |
| 17) | AFS008 | Operating Tool | Operating Tool | 1 | No |
| 18) | AFS050 | Ash Pan | Ash Pan | 1 | No |
| 19) | AFS2255 | Fuel Retainer | Fuel Retainer | 1 | No |
| 20) | AFS1469 | Centre Door Rope | Door Rope | 1 | No |
| 21) | AFS2275 | Primary Air Slider (right Hand) | Air Inlet | 1 | No |
| 3) | AOCSL | Add On Low Canopy For Shbsm B7mu 7gas New Style | Canopy | 1 | Yes |
| 4) | AOCSH | Add On High Canopy | Canopy | 1 | Yes |
| 5) | AIB8 | Add In Boiler - 2.0kw | Add In Boiler | 1 | Yes |
