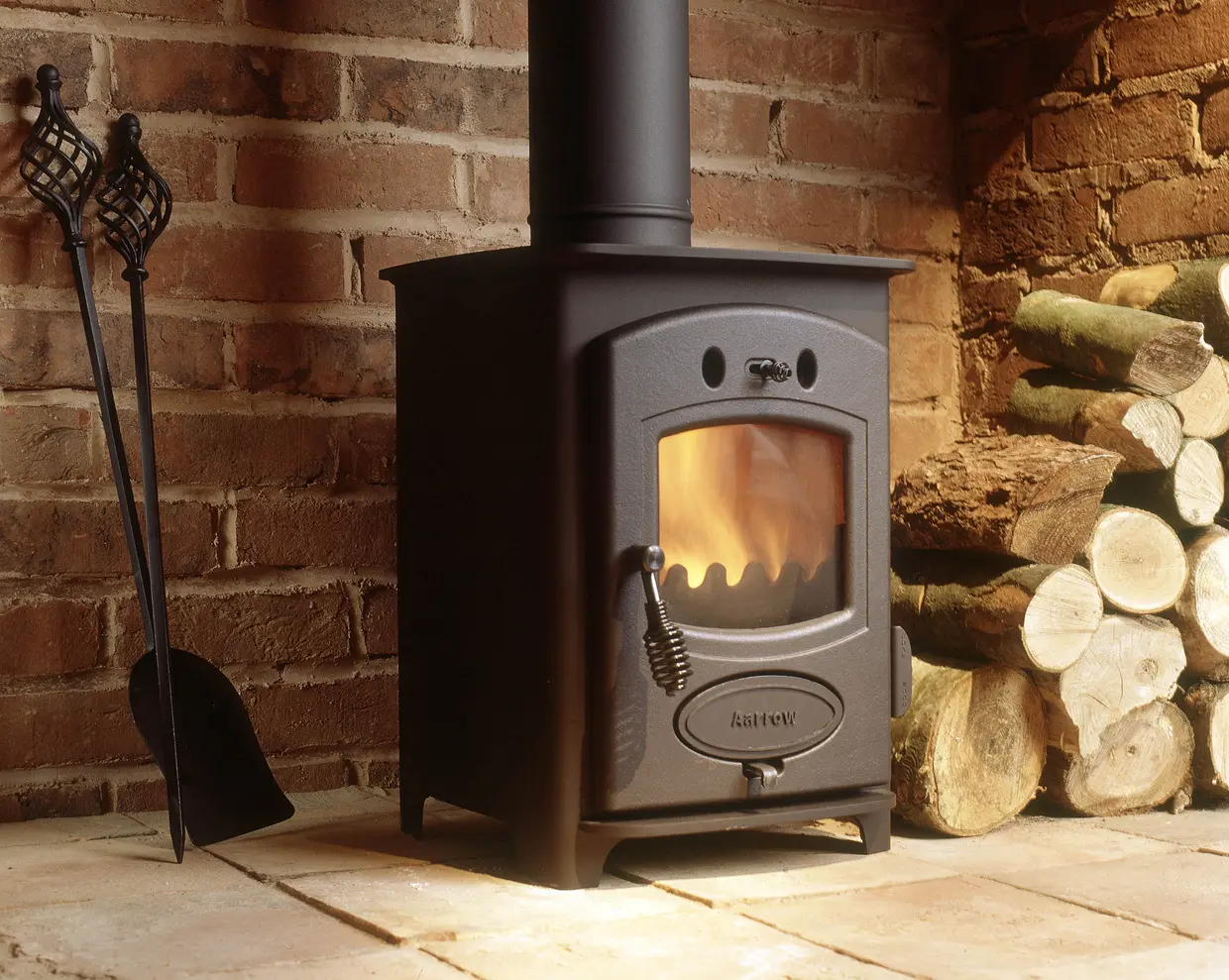

Acorn 4kw Multifuel
[ACORN4] Acorn 4kw Multifuel (Acorn) technical information
Stove model code: ACORN4
Stove model production status: Discontinued
Information last updated : 08/11/2022
Dimensions
| Height (mm): | 458 |
| Width (mm): | 355 |
| Depth (mm): | 350 |
| Height (from top to centre of rear flue) (mm): | 360 |
| Depth (from back to centre of top flue) (mm): | 90 |
| Flue diameter (mm): | 102 |
| Weight - when packed (kg): | 46 |
| Ideal log length (mm): | 200 |
Features
| Ecodesign Ready: | No |
| Model Series / Generation: | 1 |
| Wet or Dry stove: | Dry |
| Burns wood fuel: | Yes |
| Burns solid smokeless fuel: | No |
| Gas stove: | No |
| Suitable for Smoke Control Areas: | No |
| Suitable for a 12mm constructional hearth: | No |
| Suitable for direct air installation: | No |
Output - Wood fuel
| Output - wood (kW): | 4.5 |
| Min. output - wood (kW): | 1 |
| Max. output - wood (kW): | 4.5 |
Parts list
| Code | Name | Type | Quantity | Optional Extra? | |
| 1) | AFS009B | 4 Inch Hot Plate | Hot Plate | 1 | No |
| 1) | AFS048 | Door Rope Kit | Door Rope | 1 | No |
| 1) | AFS1097 | Airwash Assembly | Air Inlet | 1 | No |
| 1) | AFS047 | Hinge Kit | Hinge | 1 | No |
| 1) | AFS1086 | Throat Plate | Throat Plate | 1 | No |
| 1) | AFS1099 | Complete Fire Door | Door | 1 | No |
| 1) | AFS1010 | Glass Clips | Glass and related parts | 1 | No |
| 1) | AFS1100 | Comb With Extension | Comb and Riddle Pull | 1 | No |
| 1) | AFS1090 | Liner Set | Liner | 1 | No |
| 1) | AFS1101 | Fuel Retainer | Fuel Retainer | 1 | No |
| 1) | AFS1092 | Liner Set (side) | Liner | 1 | No |
| 1) | AFS1117 | Grate Bar Support | Grate Bar Support | 1 | No |
| 1) | AFS1232 | Airwash Handle | Handles and Locks | 1 | No |
| 1) | AFS1126 | (obsolete) Stove Operating Manual | Miscellaneous | 1 | No |
| 1) | AFS1273 | Ash Pan | Ash Pan | 1 | No |
| 1) | AFS1135 | Floor Fixing Kit | Accessories | 1 | No |
| 1) | AFS204 | Fire Door Handle Assembly | Handles and Locks | 1 | No |
| 1) | AFGS064 | Hot Plate 4 Inch For Gas | Hot Plate | 1 | No |
| 1) | AFS001 | Grate Bar | Grate Bar | 1 | No |
| 1) | AFS205 | Handle (kooler To Touch) | Handles and Locks | 1 | No |
| 1) | AFS1094 | Liner (rear) | Liner | 1 | No |
| 1) | AFS008 | Operating Tool | Operating Tool | 1 | No |
| 1) | AIB7 | Add In Boiler - 1.2kw | Add In Boiler | 1 | No |
| 1) | AFS1095 | Glass Kit | Glass and related parts | 1 | No |
| 1) | AFS009A | 4 Inch Flue Spigot | Spigot | 1 | No |
| 1) | AFS001/OLD | (obsolete) Grate Bar *old Style* (ngb1b) | Grate Bar | 1 | No |
| 1) | AFS1096 | Gasket And Glass Clips | Glass and related parts | 1 | No |
